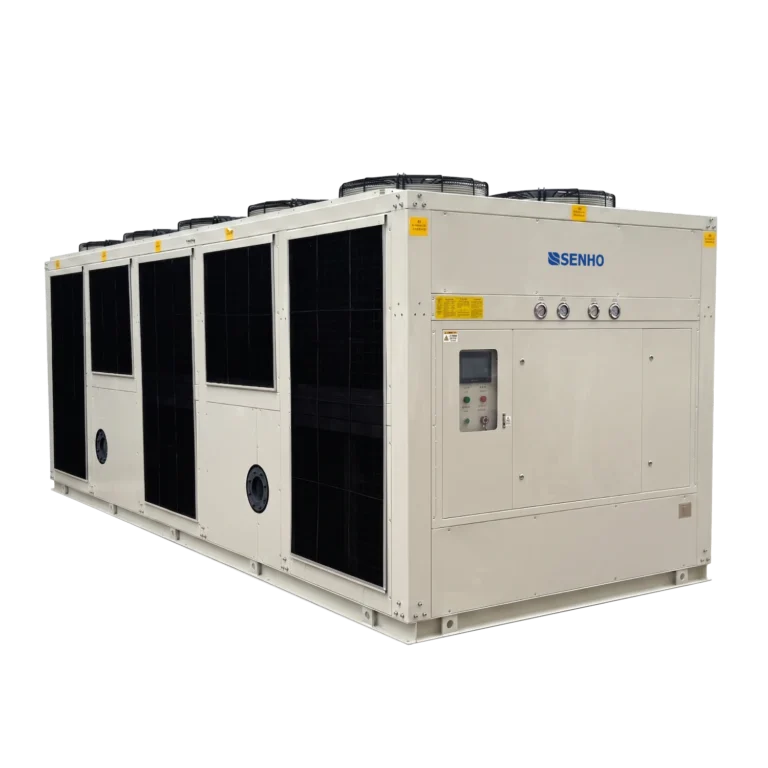

CRA Series

Air Cooled Central Chillers

General Information

Cooling Capacity Range: 76KW to 986KW
Max Working Ambient Temp: 45℃
Temp Control Range: 5℃ to 30℃

Air Cooled Condenser

Screw Type Compressor

Eco-friendly R407c Refrigerant

Uncompromising Build Quality

True reliability starts from within. We integrate only world-class components into our systems. Hover over the blue markers to explore the robust architecture and intelligent design that guarantee stable cooling for your critical processes.

Standard Features

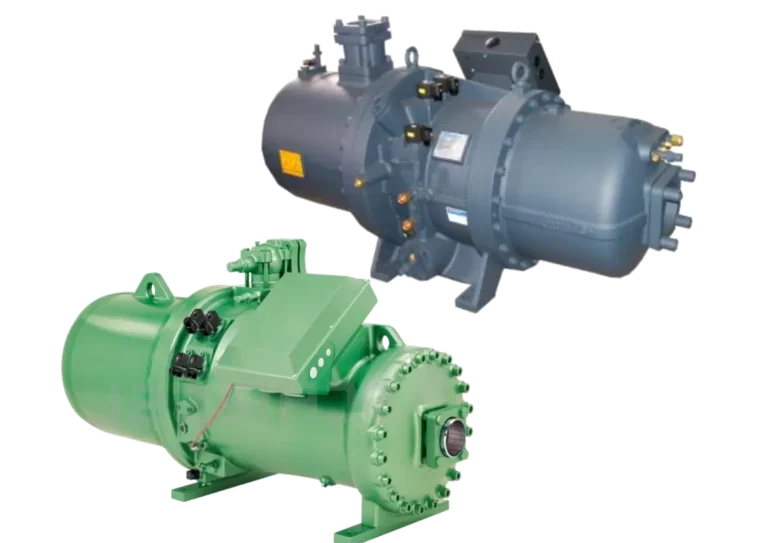

Premium Compressor Technology: Hanbell or BITZER (Germany) twin-screw compressors(Danfoss or Copeland scroll compressor version is available for cooling capacity below 400KW). Known for their high volumetric efficiency, minimal vibration, and rugged durability, they provide steadfast, year-round cooling for your most demanding industrial applications.
Intelligent Precision Control: Integrated Siemens PLC controller provides pinpoint mission control and comprehensive protection for both the chiller unit and your production process.
Wi-Fi connectivity module for real-time mobile app monitoring and manufacturer-assisted remote diagnostics.
Intuitive Control Interface: Siemens PLC with touch screen, offering an ergonomic, user-friendly interface for streamlined operation.
Smart Automation Connectivity: Full support for RS-485 communication protocols, seamless integration into existing plant management systems.
Top-Tier Electrical Components: Constructed with Schneider Electric parts for uncompromising electrical safety and longevity.
Robust Thermal Exchange: Equipped with high efficiency shell-and tube evaporator, ensuring high durability, simplified maintenance, and a non-contaminating fluid cooling.
Comprehensive Safety Suite: Including high/low-pressure alarms, motor overload protection, over-temperature monitoring, flow/level alarm, and phase sequence monitoring.

Key Components

Available Options

Variable Frequency Drive (VFD) version.
Extreme Environment Kits: Enlarged condensers or R134a refrigerant systems are available for operations in abnormally high-ambient conditions.
Low Ambient Kit: Enables safe and reliable operation in extreme temperatures down to -40°C.
Hygienic Fluid Systems: Food-grade water circuit for your applications.
Factory-Integrated Hydraulic Kit: Available with custom-engineered water pumps and reservoirs to ensure perfect compatibility, compact installation, and immediate system readiness.

Specification Table

Single Compressor Models

Model(CRAXXX)		030W1	040W1	050W1	060W1	075W1	085W1	100W1	120W1	140W1	150W1	160W1	180W1	210W1	250W1
Cooling Capacity @50Hz	KW	76	105	137	150	200	232	273	320	388	405	448	490	593	695
Cooling capacity @60Hz	KW	91	126	166	178	238	295	328	384	466	487	539	590	714	836
Total Power	KW	30.2	40.2	49.5	56	71.5	91.5	95.9	116.5	140.2	143.2	156.3	163.7	195.2	229.7
Compressor Power	KW	27.5	36.4	45.7	50.3	65.8	82.1	86.5	103.5	124	127	142.6	150	178.7	210.5
Condenser Air volume	m³/h	30000	40000	50000	60000	75000	85000	100000	120000	142000	150000	160000	180000	210000	250000
Condenser Power	KW	2.7	3.8	3.8	5.7	5.7	9.4	9.4	13	16.2	16.2	13.7	13.7	16.5	19.2
Evaporator Chilled Water Flow	m³/h	13	18	24	26	34	40	47	55	67	70	77	84	102	119
Chilled Water Pipe Size	inch	3″	3″	3″	3″	3″	4″	4″	4″	5″	5″	5″	5″	6″	8″
Dimension	L(mm)	1900	2200	2200	2760	2760	3600	3600	4000	4280	5500	5500	5500	6500	7600
	W(mm)	1480	1760	1760	1760	1760	1800	1800	2100	2100	2100	2100	2100	2100	2100
	H(mm)	1900	2050	2050	2050	2050	2200	2200	2200	2200	2200	2200	2200	2200	2200
Weight	kg	1150	1300	1600	1900	2250	2400	2850	3250	4000	4100	4500	4800	5500	6000

Double Compressor Models

Model(CRAXXX)		100W2	120W2	150W2	180W2	200W2	240W2	280W2	300W2
Cooling Capacity @50Hz	KW	274	296	394	490	546	640	784	820
Cooling capacity @60Hz	KW	330	354	474	590	656	768	943	986
Total Power	KW	98.9	113.6	147.8	172.7	189.5	229.2	265.3	273.6
Compressor Power	KW	45.7*2	50.3*2	65.8*2	79.5*2	86.5*2	105*2	121.7*2	124.5*2
Condenser Air volume	m³/h	10000	120000	150000	180000	200000	240000	280000	300000
Condenser Power	KW	7.5	13	16.2	13.7	16.5	19.2	21.9	32.5
Evaporator Chilled Water Flow	m³/h	47	51	68	84	94	110	134	141
Chilled Water Pipe Size	inch	4″	4″	5″	5″	6″	6″	6″	6″
Dimension	L(mm)	3600	4000	5500	5500	6500	7600	8600	9600
	W(mm)	1800	2100	2100	2100	2100	2100	2100	2100
	H(mm)	2200	2200	2200	2200	2200	2200	2200	2200
Weight	kg	3340	3850	4200	5000	5250	5500	6000	6500
