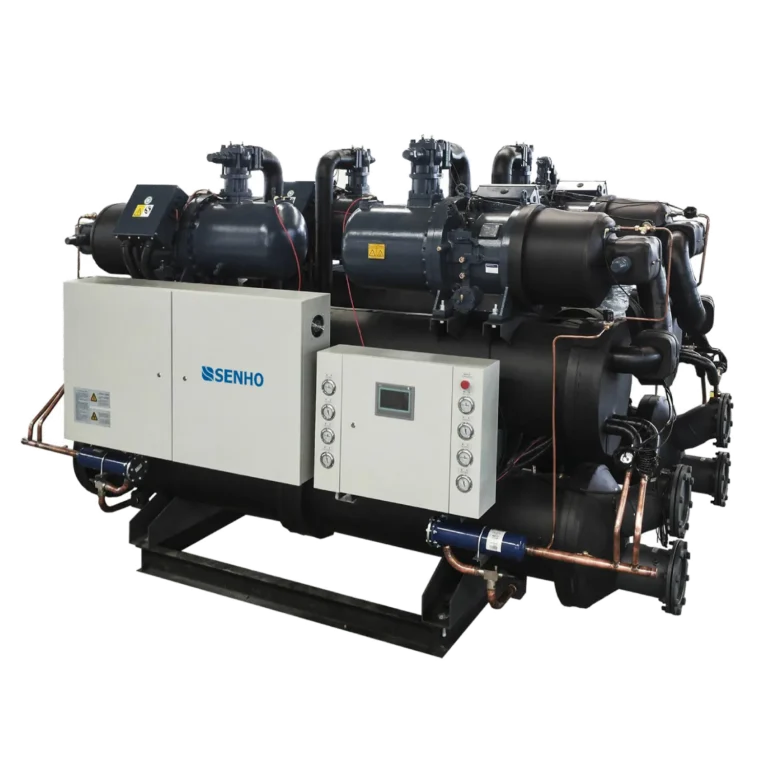

CRW Series

Water Cooled Central Chillers

General Information

Cooling Capacity Range: 76KW to 2140KW
Max Working Ambient Temp: 45℃
Temp Control Range: 5℃ to 30℃

Water Cooled Condenser

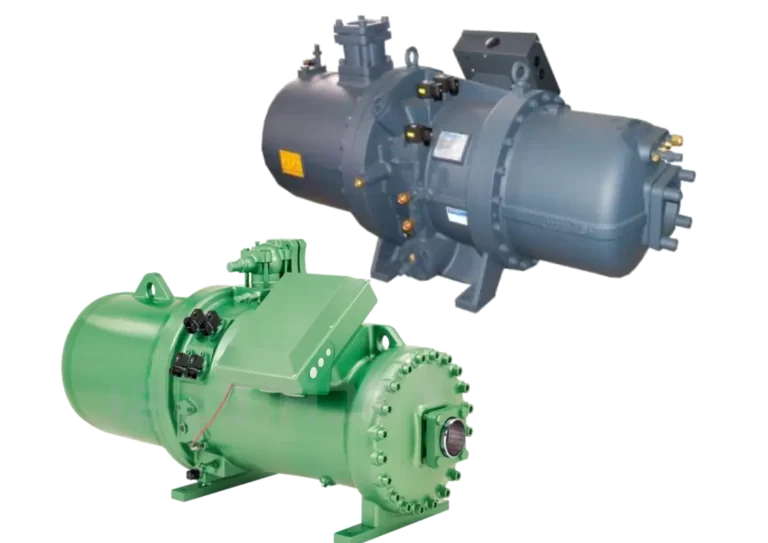

Screw Type Compressor

Eco-friendly R407c Refrigerant

Uncompromising Build Quality

True reliability starts from within. We integrate only world-class components into our systems. Hover over the blue markers to explore the robust architecture and intelligent design that guarantee stable cooling for your critical processes.

Standard Features

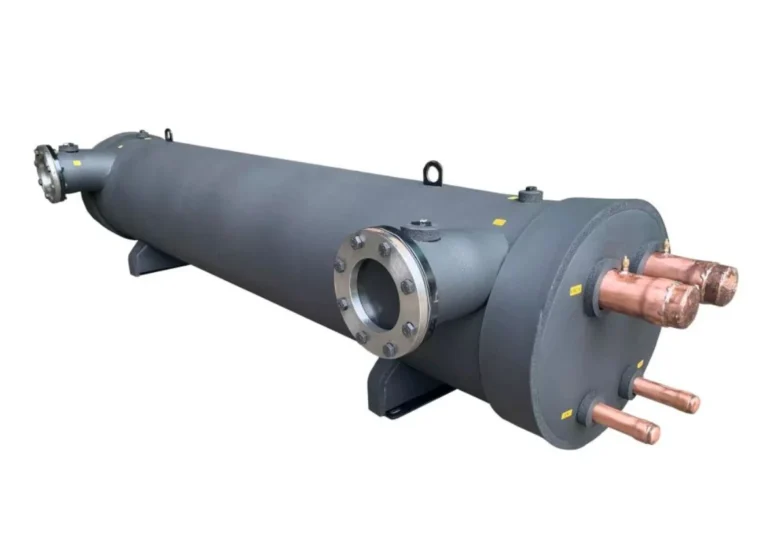

Maximum Energy Savings:Integrated industrial-grade shell-and-tube condensers paired with premium twin-screw compressors deliver industry-leading COP, significantly reducing power consumption during continuous 24/7 operations.
Compact Indoor Footprint: The fan-less heat rejection design eliminates the need for bulky overhead components, optimizing valuable floor space in your plant’s mechanical and utility rooms.

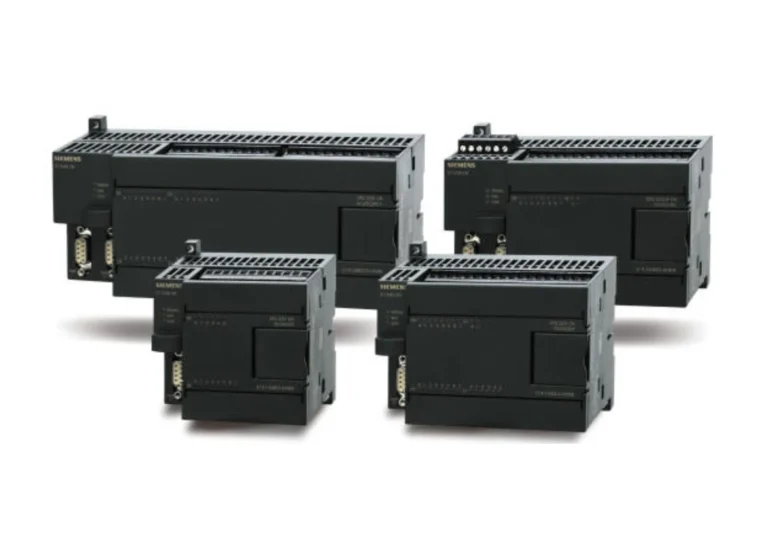

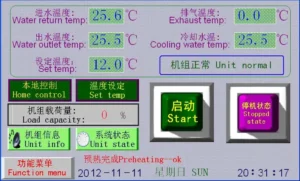

Intuitive Control Interface: Siemens PLC with touch screen, offering an ergonomic, user-friendly interface for streamlined operation.
Stepless Capacity Control: Advanced programmable logic controllers (PLC) automatically modulate the cooling output to seamlessly match your real-time factory load, completely eliminating energy waste during off-peak production cycles.
Wi-Fi connectivity module for real-time mobile app monitoring and manufacturer-assisted remote diagnostics.
Smart Automation Connectivity: Full support for RS-485 communication protocols, seamless integration into existing plant management systems.

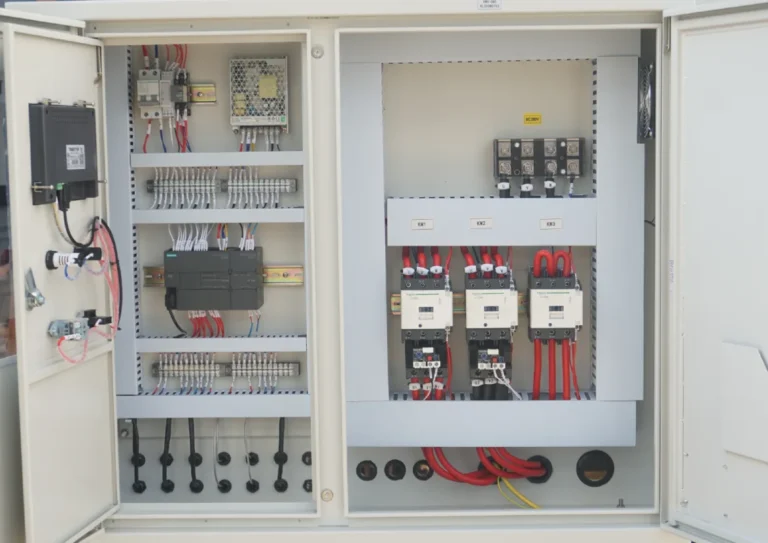

Total Electrical Defenses: Standard protections include phase reversal/loss protection, anti-freezing thermostats, compressor thermal overload cutouts, and high/low refrigerant pressure relief valves.
Extended System Longevity: Fortified with robust hydraulic and electrical safeguards—including strict water flow switches and precise pressure monitoring—to isolate anomalies instantly and ensure decades of downtime-free processing.
Comprehensive Safety Suite: Including high/low-pressure alarms, motor overload protection, over-temperature monitoring, flow/level alarm, and phase sequence monitoring.

Key Components

Available Options

Variable Frequency Drive (VFD) version.
Low Ambient Kit: Enables safe and reliable operation in extreme temperatures down to -40°C.
Hygienic Fluid Systems: Food-grade water circuit for your applications.
Factory-Integrated Hydraulic Kit: Available with custom-engineered water pumps and reservoirs built on a skid, to ensure perfect compatibility, compact installation, and immediate system readiness.

Specification Table

Single Compressor Models

Models(CRWXXX)		030W1	040W1	050W1	060W1	075W1	085W1	100W1	120W1	140W1	150W1	160W1	180W1	210W1	230W1	240W1	280W1

Cooling Capacity @50Hz	KW	87	120	157	169	226	266	313	366	445	465	514	578	673	724	788	889
Cooling Capacity @60Hz	KW	104	144	189	203	271	338	376	440	535	559	618	695	809	871	948	1070
Total Power	KW	23	31	38	42	55	63	73	87	104	105.6	119	133	152	164	179	207
Compressor Power	KW	23	31	38	42	55	63	73	87	104	106	119	133	152	164	179	207
Condenser Water Flow Rate	m³/h	19	26	36	37	49	57	67	78	95	98	109	123	142	153	172	188
Condenser Inlet/Outlet Size	inch	3″	3″	3″	3″	3″	4″	4″	4″	5″	5″	5″	5″	6″	6″	6″	10″
Nominal Chilled Water Flow	m³/h	15	21	27	29	39	46	54	63	77	80	89	100	116	125	136	153
Chilled Water In/Out Size	inch	3″	3″	3″	3″	3″	4″	4″	4″	5″	5″	5″	5″	6″	6″	6″	10″
Demiension	L(mm)	2470	2470	2500	2500	3000	3050	3100	3580	3610	3610	3630	3720	3680	3680	3680	3680
	W(mm)	740	740	760	760	760	770	770	900	900	900	1320	1390	1450	1450	1450	1540
	H(mm)	1760	1760	1870	1870	1870	1970	1970	1970	2050	2050	1760	1760	1760	1760	1760	1770
Dry Weight	kg	760	820	950	1100	1300	1500	1700	1850	2000	2200	2400	2600	2800	3000	3200	3350

Double Compressor Models

Models(CRWXXX)		100W2	120W2	150W2	180W2	200W2	220W2	240W2	280W2	310W2	360W2	400W2	460W2	480W2	560W2
Cooling Capacity @50Hz	KW	314	338	452	562	626	674	732	900	1028	1156	1346	1448	1576	1778
Cooling Capacity @60Hz	KW	378	406	542	676	752	810	880	1070	1236	1390	1618	1742	1896	2140
Total Power Input		76	84	112	132	146	158	176	208	238	266	304	328	358	404
Compressor Power	KW	38*2	42*2	56*2	66*2	73*2	79*2	87*2	104*2	119*2	133*2	152*2	164*2	179*2	202*2
Condenser Water Flow Rate	m³/h	68	73	97	120	133	143	156	190	218	245	284	306	333	376
Condenser Inlet/Outlet Size	inch	4″	5″	5″	4″*2	4″*2	4″*2	4″*2	5″*2	6″*2	6″*2	6″*2	6″*2	8″*2	6″*2
Nominal Chilled Water Flow	m³/h	55	58	78	97	108	116	126	155	177	199	232	249	271	306
Chilled Water In/Out Size	inch	4″	5″	5″	5″	5″	6″	6″	8″	8″	8″	8″	8″	10″	10″
Demiension	L(mm)	3370	3370	3400	3900	3950	3950	4000	4000	4060	4200	4810	5050	5280	5130
	W(mm)	1050	1050	1150	1400	1400	1400	1400	1400	1400	1400	1550	1700	1700	1700
	H(mm)	1700	1800	1920	1960	2000	2000	2130	2140	2240	2240	2480	2560	2580	2580
Dry Weight	kg	1900	2250	2600	3000	3400	3800	4200	4500	4800	5400	5850	5950	6550	6750
