True reliability starts from within. We integrate only world-class components into our systems. Hover over the blue markers to explore the robust architecture and intelligent design that guarantee stable cooling for your critical processes.

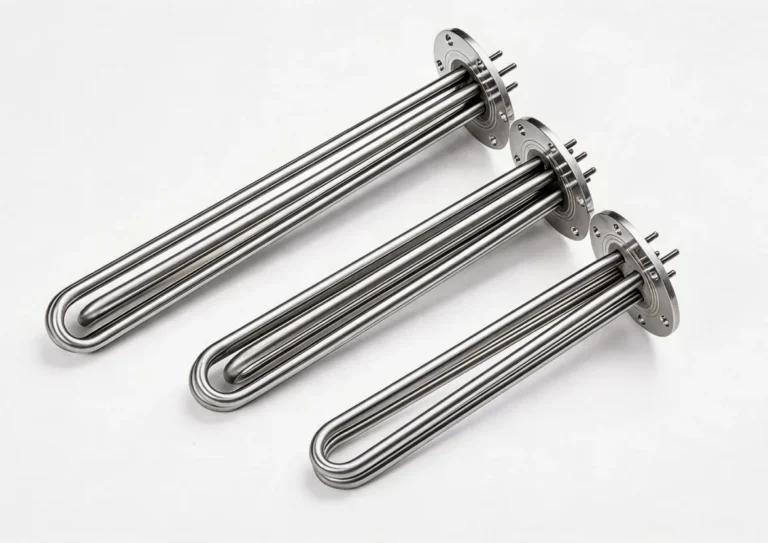

The integrated heating module provides rapid temperature elevation and precise thermal compensation, ensuring exceptional overall temperature stability.
The intelligent controller features an intuitive interface, ensuring precise dual-mode temperature regulation and real-time monitoring.
The high-performance pump ensures reliable, continuous fluid circulation for optimal heat exchange and system efficiency.
Robust scroll compressors from leading international brands such as Danfoss, Copeland, or Panasonic.
Seamless Heating & Cooling Switch: Engineered to deliver precise thermal regulation with quick transitions between cooling and heating cycles for demanding processes.
“Plug-and-Play” Installation: Integrated hydraulic module, including an oversized reservoir and high-flow pump for easy deployment.
Robust Thermal Exchange: Equipped with an integrated SUS304 coil-in-tank evaporator, ensuring high durability, simplified maintenance, and a non-contaminating fluid cooling.
Corrosion-Free Fluid Circuit: Standard on models PRA025L2 and below, featuring non-ferrous water circuit parts.
Energy-Saving Operation: Each unit utilizes independent refrigeration circuits; intelligent load-matching logic activates only the necessary stages, significantly reducing energy consumption.
Intuitive Control Interface: Smart controller engineered by SENHO specifically for industrial cooling, offering an ergonomic, user-friendly interface for streamlined operation.
Comprehensive Safety Suite: Including high/low-pressure alarms, motor overload protection, over-temperature monitoring, flow/level alarm, and phase sequence monitoring.

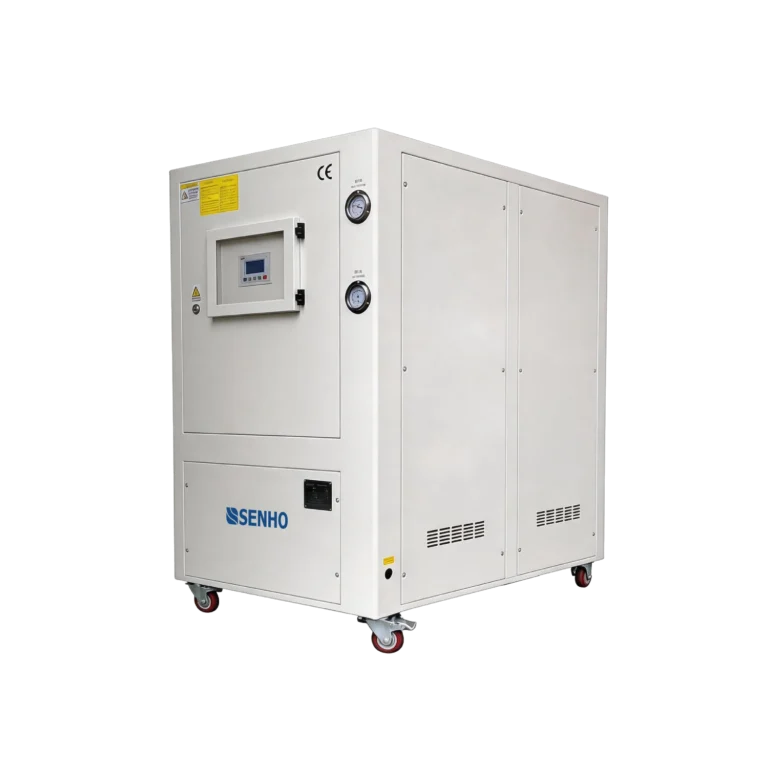

| Models(PHWXXX) | 003L1 | 005L1 | 008L2 | 010L2 | 012L2 | 015L2 | 020L2 | 025L2 | 030L2 | 040L4 | 050L4 | 060L3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity @50Hz | KW | 9.2 | 15 | 23.6 | 30 | 35 | 39 | 57.8 | 67.4 | 83.2 | 115.6 | 140.8 | 167.7 |
| Cooling Capacity @60Hz | KW | 11.3 | 17.9 | 28.3 | 36 | 42.2 | 48 | 70.6 | 84.6 | 99.4 | 141.2 | 169 | 201.2 |
| Total Power Input(Heating) | KW | 6.75 | 9.75 | 12.75 | 25.5 | 25.5 | 31.5 | 31.5 | 38.2 | 38.2 | 44 | 44 | 54 |
| Total Power Input(Cooling) | KW | 3.05 | 4.05 | 6.15 | 8.1 | 9.3 | 10.3 | 14.7 | 17.4 | 22.4 | 30.4 | 35.8 | 40 |
| Heating Power | KW | 6 | 9 | 12 | 24 | 24 | 30 | 30 | 36 | 36 | 40 | 40 | 50 |
| Compressor Power | KW | 2.3 | 3.3 | 2.7*2 | 3.3*2 | 3.9*2 | 4.4*2 | 6.6*2 | 7.95*2 | 10.1*2 | 6.6*4 | 7.95*4 | 12*3 |
| Condenser Water Flow | m³/h | 1″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ | 3″ | 3″ | 3″ |
| Cooling Water Size | inch | 1.6 | 2.6 | 4 | 5.2 | 6 | 6.4 | 9.8 | 11.6 | 14.3 | 19.6 | 24.1 | 28.7 |
| Chilled Water Flow Rate | m³/h | 0.5 | 0.9 | 1.4 | 2.3 | 2.7 | 3.6 | 4.5 | 5.1 | 7.2 | 9.5 | 10.3 | 14.4 |
| Tank Capacity | L | 16 | 20 | 60 | 70 | 70 | 135 | 200 | 200 | 330 | 330 | 330 | 490 |
| Chilled Water In/Out Size | inch | 1″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2″ | 2″ | 2“ | 2″ | 2-1/2″ | 2-1/2″ | 3″ |
| Waer Pump Power | KW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 | 4 |
| Dimension | L (mm) | 950 | 950 | 1180 | 1180 | 1180 | 1700 | 1700 | 1700 | 1800 | 2320 | 2320 | 2550 |
| W (mm) | 500 | 500 | 700 | 700 | 700 | 800 | 800 | 800 | 900 | 1000 | 1000 | 1100 | |
| H (mm) | 990 | 990 | 1325 | 1325 | 1325 | 1620 | 1620 | 1620 | 1800 | 1800 | 1800 | 1800 | |
| Weight | kg | 130 | 150 | 250 | 300 | 350 | 400 | 500 | 600 | 750 | 1200 | 1380 | 1450 |
